Case study · engineered end to end by Theo Hytopoulos

Muse

I engineered Muse from the ground up: a voice companion that helps older adults tell the stories of their lives, and keeps those stories for their families.

RoleCo-founder · chief architect & engineering lead
ScopeiOS · realtime voice · backend · AI · infra · security
TeamManaging a Product Engineer
scroll
01

What I engineered.

I engineered every layer of Muse, from the iOS app a storyteller holds to the audio their grandchildren hear. Here it is by discipline.

1,181commits
122klines of TS · Python · SQL
39backend functions
245schema migrations
161test suites
79row-level security policies
02

It listens like
a great interviewer.

Storytellers don’t want a chatbot. Muse lets them talk, keeps them going with small acknowledgments, and saves its questions for when a story is finished. It moves through a conversation the way a skilled oral historian would, warming up, finding a thread, listening, then filling the gaps.

who talks
Illustrative exchange, not a real storyteller.
Under the hood
runtime
Node/WebSocket voice runtime on Railway, streaming to GPT Realtime Mini
modes
5 conversational states, from warming up to filling in the gaps, each with its own prompt overlay and tool set
prompts
compiled from versioned sources, and CI fails the build on an uncompiled or drifted prompt
side trips
asking for help with the app is a detour, not a story state: the runtime goes back to the mode it left rather than moving forward
interface
provider-neutral ConversationProvider port, so the speech model can change without touching the modes
evaluation
simulated conversations, runtime benchmarks and per-turn cost regression reports
03

Instant replies.
Deliberate memory.

Talking to Muse feels immediate, with no awkward pause while a model thinks. But nothing a storyteller says is saved, shared or deleted on impulse. Every change to their archive goes through a separate, deliberate decision, and they only ever hear one Muse.

Storyteller speaks · listens GPT Realtime Mini wording · timing interruptions Controller Railway System 1 models memory every turn · ms off the response path

It feels like a conversation

Replies come in real time, and Muse handles interruptions and turn-taking naturally.

It knows what matters

Muse keeps track of the thread a storyteller is on and what’s appropriate to bring up next, across sessions.

It never acts on a whim

A quick, off-the-cuff reply can’t change or corrupt anyone’s archive.

Under the hood
voice
GPT Realtime Mini handles every turn: audio in, speech out, turn-taking and interruption
controller
Railway service backed by System 1 decision models, off the response path, that never speaks
write authority
only the controller can write stories, memories and deletions
delegation
EdDSA-signed JWTs, 60 s max lifetime, bound to audience, environment and session, unique jti, verified by the tool gateway
secrets
self-hosted Infisical, scoped per environment, so the runtime never holds a master key
04

Built to be trusted
with a life.

These are the promises Muse makes to every family, each followed by the engineering that keeps it.

Every memory has a receipt

When Muse says “last time you mentioned your daughter,” it can point to the moment you said it.

provenance
each extracted fact carries a bounds-checked source span resolved to a voice clip ID
storage
pgvector memory cards, consolidated by clustering and never by deleting
memory card · family · example
Has a daughter, Carol, who lives in Spokane.
source → session 3 · clip 14 · 02:31

Your words, never invented

Muse shapes and arranges a story, but it never puts words in the storyteller’s mouth.

structure
story decisions operate on span indices into real clips, not generated text
quotes
every verbatim phrase is re-validated as a real substring before it’s used

Only family sees finished stories

Descendants see finished stories only, and only from storytellers they’re connected to.

authn
Supabase Auth JWTs, with user-scoped database clients
rbac
storyteller and descendant roles enforced by 79 RLS policies, with sensitive tables restricted to the service role
ci
RLS integration test run against all 245 migrations applied fresh

Forget anything, just by asking

A storyteller can ask Muse out loud to forget something. Muse confirms first, and they have a day to change their mind.

flow
scope is read back verbatim and confirmed, with a 24-hour undo window
safety
deletion queue is service-role only, and it fails closed: an error means no deletion

Nothing leaks out the side door

Personal stories don’t end up in logs, error reports or anyone’s inbox.

telemetry
Sentry events are rebuilt from an allow-list of fields, and production logs are metadata-only
secrets
self-hosted Infisical, plus AWS SSM on GPU hosts, with least-privilege IAM
ci
session-redaction coverage test runs on every build
05

An app you can use
at arm’s length.

Muse is made for storytellers in their seventies and beyond. The type is large, the paths are short, and the main screen asks for one thing only: talk. Family members get the same app with their own accent color.

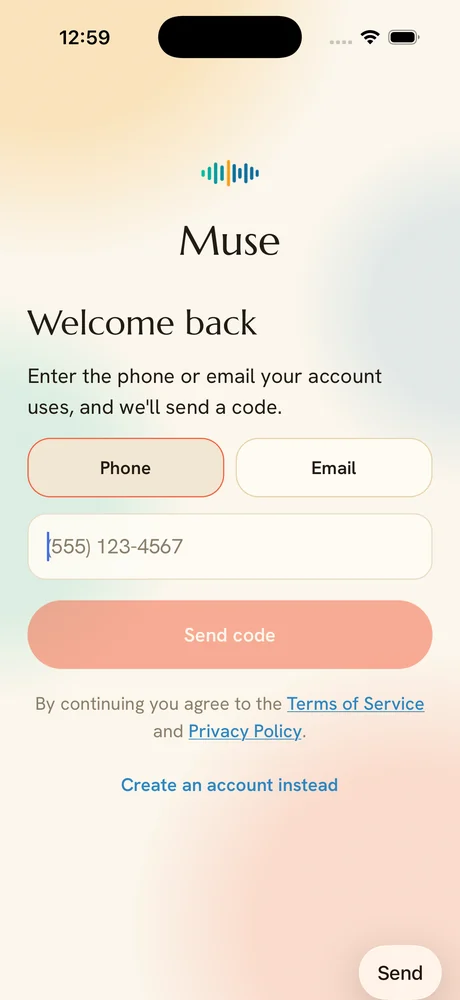

Muse sign-in screen: phone or email, with a one-time code
No passwordsSign in with a one-time code sent by text or email.

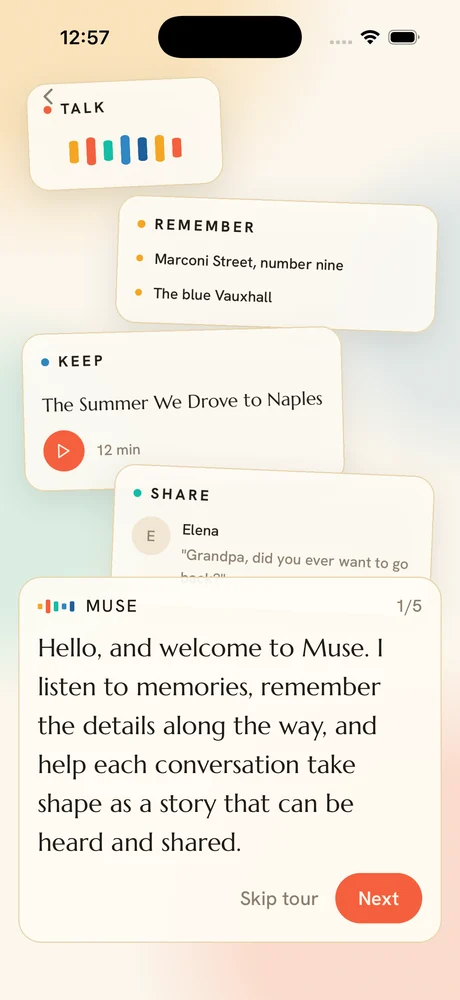

Muse's guided tour, showing talk, remember, keep and share cards
A tour, narrated by MuseTalk, remember, keep and share, explained in five short steps.

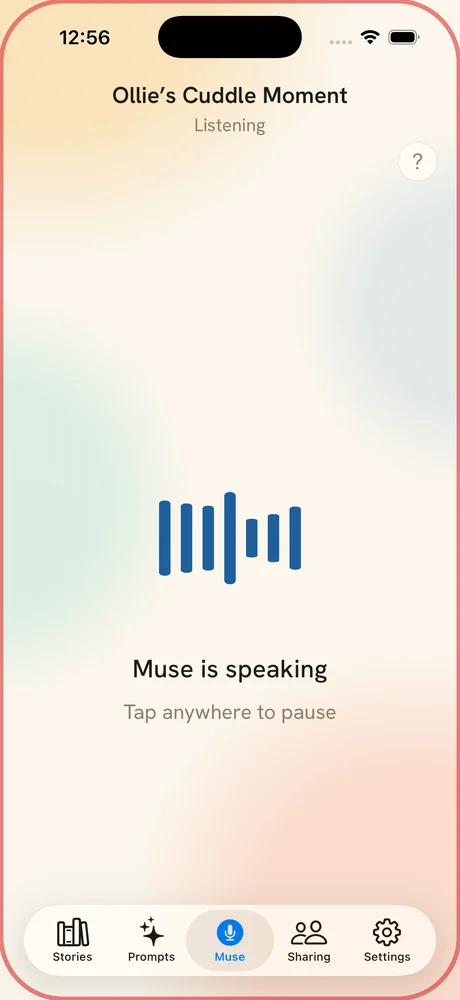

A live Muse voice session with an animated waveform and the words 'Muse is speaking'
One screen, one actionTap anywhere to begin or pause. The waveform shows who’s talking.

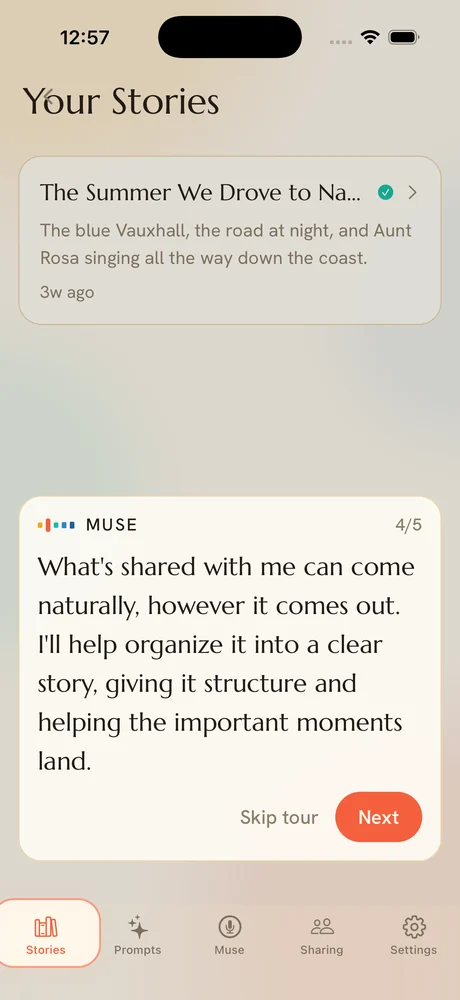

Muse story library showing a finished story during the guided tour
Every story, keptFinished stories arrive titled and summarized, ready to listen to and share.
Under the hood
stack
React Native and Expo on a native dev client, in TypeScript, shipping to iOS
audio
custom native Expo module (Swift/Kotlin) that runs mic capture and playback on one audio engine, streams raw PCM, and tracks playback drain so the app knows when Muse has actually finished speaking
auth
passwordless one-time codes by phone or email through Supabase Auth
navigation
native liquid-glass tab bar, falling back to a classic tab bar during the tour so each tab can be measured and highlighted
legibility
nothing on first-run screens is set in muted grey or smaller than body text, for phones held outdoors at arm’s length
roles
storytellers and descendants share one design system, and only the accent changes (coral or turquoise)
quality
20 UI test suites, plus Sentry telemetry rebuilt from an allow-list of fields
